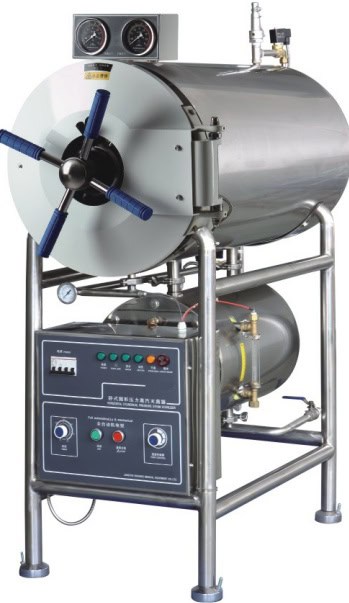

WS-150YDC Horizontal Autoclave

Horizontal Pressure Steam Sterilizer

The horizontal autoclave, which adopts the way of gravity exchange to release the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjusts the steam inlet and outlet according to chamber temperature during sterilizing. This unit is an ideal equipment for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabric glassed, and the culture media etc.

Characteristics

  • Automatically controlled the sterilizing process, easy to operate.
  • With drying function, suitable for the medical dressing drying.
  • With over-temperature, over-pressure auto-protect.
  • The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the door doesn’t close well.
  • The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.
  • Automatically cut off the power if the water-lack happened, and alarm at the meanwhile.
  • Fully stainless steel structure.

Spec:

Technical data WS-150YDC WS-200YDC WS-280YDC WS-400YDC
Sterilizing chamber Volume 150L
φ440×850mm
200L
φ515×1000mm
280L
φ600×1000mm
400L
φ700×1100mm
working pressure 0.22MPa
working temperature 134℃
Adjustment of temperature 40℃- 134℃
Time of sterilization 0-99 min
Time of drying 0-99 min
Heat average ≤±2℃
Power 9KW/380V 50Hz 9KW/380V 50Hz 12KW/380V 50Hz 18KW/380V 50Hz
Dimension 1400×600×1300 1400×670×1650 1400×770×1780 1430×880×1830
Transport dimension 1550×750×1850 1560×820×1850 1680×920×2100 1600×1050×2100
 G.W/N.W 320/240 KG 350/260 KG 465/365 KG 530/420 KG
