Features:
◎ Wide application range: Can be used for mixing samples in Test tubes, Centrifuge tubes, flasks etc.
◎ High performance & low noise AC motor to make rapid and thorough mixing.
◎ Specified designed operation panel, Easy to clean and wear-resisting.
◎ Shaking speed can be adjusted automatically based on the pressure degree.
Spec:

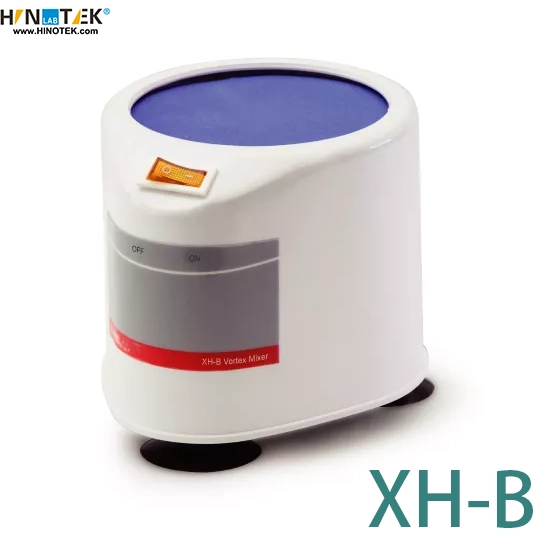

| Model | XH-B | XH-C | XH-D | XH-E | XH-F |
| Operation method: | Rapid orbital motion | Rapid orbital motion | Rapid orbital motion | Rapid orbital motion | Rapid orbital motion |
| Eccentric diameter: | 3.6mm | 3mm / 4mm | 4.4mm | 4.4mm | 4mm |
| Rating speed: | 2600rpm | 2800rpm | 1000-2800rpm | 0-2800rpm | 200-3000rpm |
| Running mode: | Continous | Continous, Jog | Continous, Jog | Continous, Jog | Timing, Continous, Jog |
| Working plate size: | Ø100mm | Ø55mm | Ø55mm | ||
| Input voltage (Frequency): | AC 220V±10%(50/60Hz) | AC 220V±10%(50/60Hz) | AC 220V±10%(50/60Hz) | AC 220V±10％(50/60Hz) | AC 100-240V (50/60Hz) |
| Permissible relative moisture: | 80% | 80% | 80% | 80% | 80% |
| Output power: | 12W | 30W | 30W | 60W | 40W |
| Protective class: | IP21 | IP21 | IP21 | IP21 | IP21 |
| Permissible ambient temperature: | 5-50°C | 5-50°C | 5-50°C | 5-50°C | 5-50°C |
| Dimensions: | 100×130×135mm | Ø110×150mm | 180×120×180mm | 130×160×155mm | 130×160×155mm |
| Net. Weight: | 2.3Kg | 2.5Kg | 4.5Kg | 2.5Kg | 2.5Kg |
