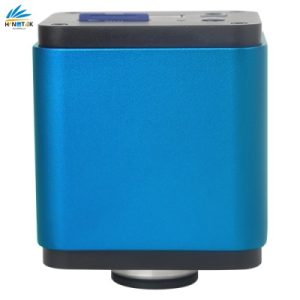

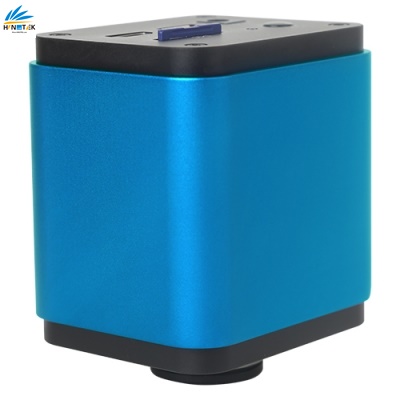

XCAM1080PHB/PHD/PHE is a multiple interfaces (HDMI+WiFi+SD card, X here means multiple interfaces) CMOS camera and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+WiFi are used as the data transfer interface to HDMI display or computer.
For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.
For WiFi output, unplug the mouse and plug in the USB WiFi adapter, connect the computer WiFi to the camera, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView, you can control the camera, process the image as ToupTek’s other USB series camera.
The XCAM1080PHB/PHD/PHE’s basic characteristic is as follows:
- All in 1( HDMI+WiFi) C-mount camera with Sony high sensitivity CMOS sensor;
- For HDMI application, with built-in multiple-language XCamView software. The camera characteristic can be controlled by XCamView through the USB mouse. The other basic processing and choosing can also be realized by the XCamView;
- 1920 × 1080 (1080P) resolutions to match the current high-definition displayer on the market; Support plug and play application;
- For HDMI application, 5.04M resolution image(2592*1944 XCAM1080PHB) or 2.0M resolution image(1920*1080 XCAM1080PHD/PHE(Global Shutter for PHE)) can be captured and saved for browsing; For video, 1080P video stream(asf format) can be captured and saved;
- With the USB WiFi adapter, the XCAM1080PHB/PHD/PHE can be used as WiFi camera, the ToupView/ToupLite advanced image processing software is used to display the video and capture image. support plug and play application;
- Ultra-Fine Color Engine with perfect color reproduction capability(WiFi);
- With advanced video & image processing application ToupView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);
- XCAM1080PHB/PHD/PHE can meet various applications and can be widely used in industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.
The possible applications of XCAM1080PHB/PHD/PHE are as follows:
- Scientific research, education (teaching, demonstration and academic exchanges);
- Digital laboratory, medical research;
- Industrial visual (PCB examination, IC quality control);
- Medical treatment (pathological observation);
- Food (microbial colony observation and counting);
- Aerospace;
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
|
XCAM1080PHB |
1080P/5M/ Sony IMX178(C) 1/1.8″(6.22×4.67) |
2.4×2.4 | 425 mv with 1/30s 0.15 mv with 1/30s |
60@1920×1080 (HDMI) 25@1920×1080 (WIFI) |
1×1 | 0.03ms~918ms |
|
XCAM1080PHD |
1080P/2M/ Sony IMX185(C) 1/1.9″(7.20×4.05) |
3.75×3.75 | 1120 mv with 1/30s 0.15 mv with 1/30s |
60@1920×1080 (HDMI) 25@1920×1080 (WIFI) |
1×1 | 0.06ms~918ms |
|
XCAM1080PHE |
1080P/2M/ Sony IMX249(C,GS) 1/1.2″(11.25×6.33) |
5.86×5.86 | 1016 mv with 1/30s 0.15 mv with 1/30s |
60@1920×1080 (HDMI) 25@1920×1080 (WIFI) |
1×1 | 0.043ms~1000ms |
| Interface & Button Functions | |||||
|---|---|---|---|---|---|
  |

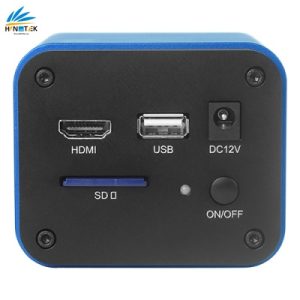

USB | USB Camera or USB Mouse | |||
| HDMI | HDMI Output | ||||
| DC12V | 12V Power in | ||||
| SD | SD Card Slot | ||||
| ON/OFF | Power On/Off Switch | ||||
| LED | Power On Indicator | ||||
| Other Specification for HDMI Output | |||||
|---|---|---|---|---|---|
| UI Operation | With USB Mouse | ||||
| Image Capture | JPEG Format with 5M Resolution in SD Card(XCAM1080PHB)
JPEG Format with 2M Resolution in SD Card(XCAM1080PHD) |
||||
| Video Record | ASF Format 1080P 30fps in SD Card | ||||
| Camera Control Panel | Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control |
||||
| Toolbar | Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function |
||||
| Other Specification for WIFI Output | |||||
| UI Operation | With USB Mouse to Operate on the embedded XCamView | ||||
| WIFI Performance | 802.11n 150Mbps; RF Power 20dBm(Maximum) | ||||
| Maximum Connected Devices | 3~6(According to the Environment and Connection Distance) | ||||
| White Balance | Auto White Balance | ||||
| Color Technique | Ultra-Fine Color Engine (WIFI) | ||||
| Capture/Control API | Standard SDK for Windows/Linux/Mac(WIFI) | ||||
| Recording System | Still Picture or Movie (WIFI) | ||||
| Software Environment (for USB2.0 Connection) | |||||
| Operating System | Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit) OSx(Mac OS X) Linux |
||||
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | ||||
| Memory: 4GB or More | |||||
| USB Port: USB2.0 High-speed Port | |||||
| Display: 19” or Larger | |||||
| CD-ROM | |||||
| Operating Environment | |||||
| Operating Temperature(in Centidegree) | -10~ 50 | ||||
| Storage Temperature(in Centidegree) | -20~ 60 | ||||
| Operating Humidity | 30~80%RH | ||||
| Storage Humidity | 10~60%RH | ||||
| Power Supply | DC 12V/2A Adaptor | ||||
| Overall Dimensions | |||||
| Width x Depth x Height | 78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”) | ||||
| Shipping Weight | 0.47 kg (1.0lbs) | ||||
