LHS-80HC-I Series Temperature & Humidity Chamber
Microprocessor controller (with timing function)
Summary:
It is equipped with a precise system of temperature and humidity control, which provide various necessary environmental simulative conditions for industrial researches and biotechnology tests. Widely applied in sterile tests and stabilitycheck-up of pharmaceuticals, textile and food processing as well as tests in material, performance, packing and lifetime
of industrial products.
Features:
● Polished stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable.
● Microprocessor controller for temperature and humidity ensures of precise and reliable control.
● Imported compressor.
● Independent temperature-limiting alarm system ensures experiments run safely.
● Printer connector and RS485 connector are options which can connect printerand computer to record the parameters and the variations of temperature.(option)
● There is a 25mm instruction connection hole on the left side of the chamber for easy testing operation and temperature measurement.
Spec:
Model | LHS-80HC-I LHS-80HC-II |
LHS-150HC-I LHS-150HC-II |
LHS-250HC-I LHS-250HC-II |
LHS-500HC-I LHS-500HC-II |
LHS-800HC-I LHS-800HC-II |
Temperature Range | I:-5~80℃ II:-10~70℃ | ||||
Display Resolution | 0.1℃ | ||||
Temperature Stability | High ±0.5℃ Low ±1℃ | ||||
Temperature Uniformity | ±2℃ | ||||

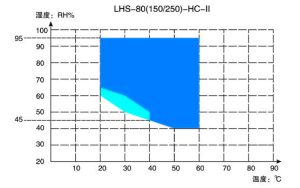

Humidity Range | I:40~85% II:40~95% | ||||
Humidity Accuracy | ±3%RH | ||||
Power Consumption | 2000W | 2100W | 2300W | 3850W | 8050W |
Ambient Temperature | +5~35℃ | ||||
Electrical Requirement | 220V 50Hz | ||||
Interior Dimension(W×D×H,mm) | 400×400×500 | 550×405×670 | 600×500×830 | 670×720×1020 | 800×590×1650 |
Exterior Dimension(W×D×H,mm) | 550×790×1080 | 690×800×1430 | 740×900×1580 | 850×1100×1930 | 1360×890×2000 |
Shelves | 2PCS | 3PCS | 4PCS |
* With model “I” optional printer with model “II” standard printer
Options:
● Printer
● Independent temperature-limiting Alarm system
