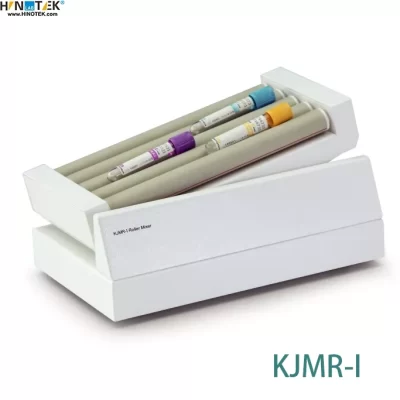

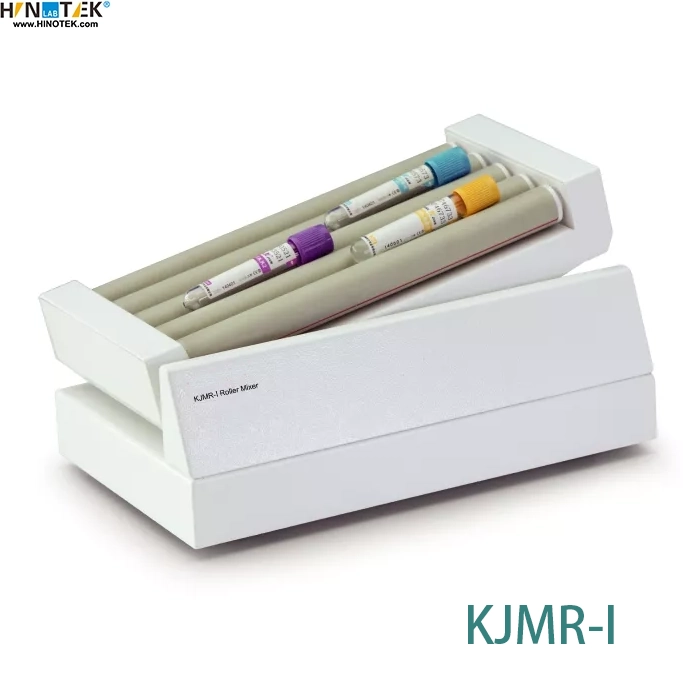

KJMR-I Roller Mixer Features:
◎ It can carry out two functions (Roll and Swing) at same time, adapted to mixing of blood samples, adhesive materials and Liquid – solid suspensions.
◎ Driven by High performance AC Motor, Running stable, No noise, Long lifetime.
◎ 5 rolls, comnpact structure makes it less space occupation. It can be put in cold closet or incubators, suitable for various applications.
◎ Reasonable space between the rolls makes it fit for different size tubes.

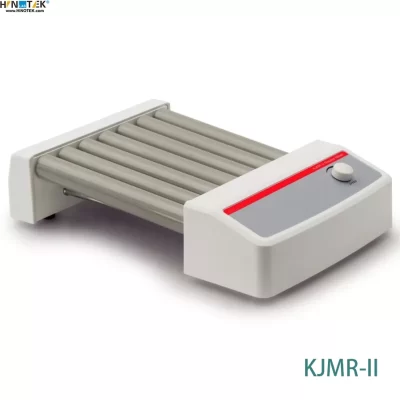

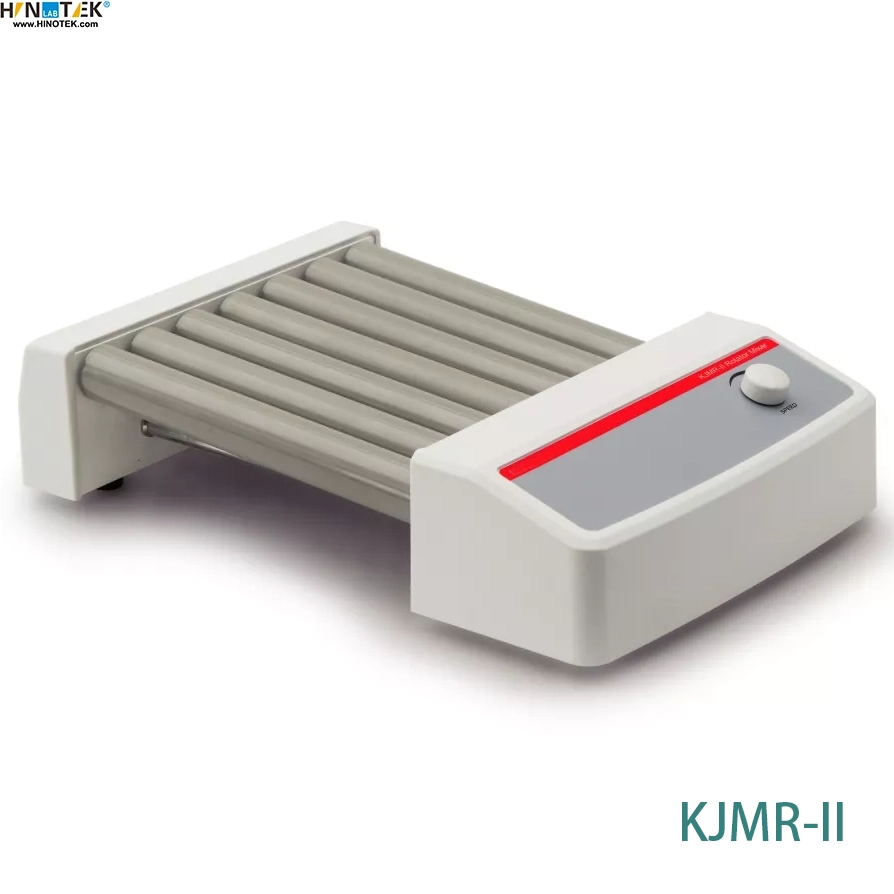

KJMR-II Roller Mixer Features:
◎ It can carry out two functions (Roll and Swing), adapted to mixing of blood samples,adhesive materials and Liquid – solid suspensions.
◎ Driven by High performance DC declaration Motor, Running stable, No noise, Long lifetime.
◎ 7 rolls, compact structure makes it less space occupation, suitable for various applications.
◎ Reasonable space between the rolls makes it fit for different size tubes.
◎ According to actual requirements, We can customize the bidirectional Cross Rolling Mode. The roller can be extended within a certain range to fit for more tubes.

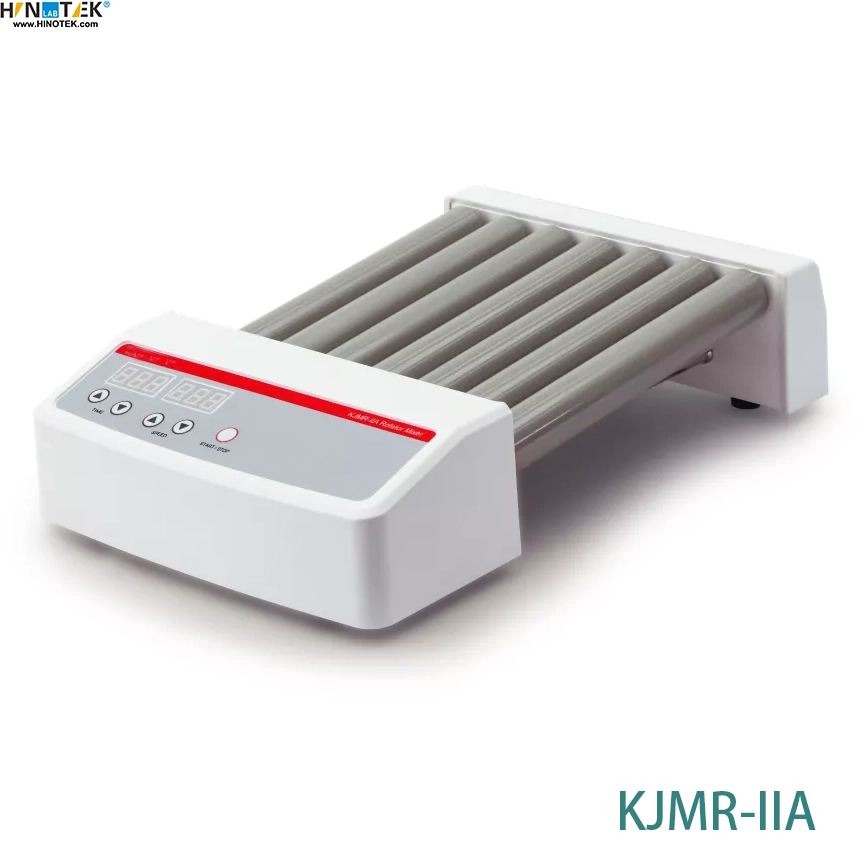

KJMR-IIA Roller Mixer Features:
◎ It can carry out two functions(Roll and Swing), adapted to mixing of blood samples, adhesive materials and Liquid – solid suspensions.
◎ Driven by High performance DC declaration Motor, Running stable, No noise, Long lifetime.
◎ 7 rolls, compact structure makes it less space occupation, suitable for various applications.
◎ LED with backlight can display the current speed, time and operation mode, convenient for reading and setting.
◎ Precise digital time and speed setting can easily carry out the continuous operation mode.
◎ Wide voltage design avoids the impact of unstable voltage on the equipment.
◎ Reasonable space between the rolls makes it fit for different size tubes.
◎ According to actual requirements, We can customize the bidirectional Cross Rolling Mode. The roller can be extended within a certain range to fit for more tubes.
Spec:
| Model | KJMR-I | KJMR-II | KJMR-IIA |
| Operation method: | Roll+swing | Roll+swing | Roll+swing |
| Swing angle: | ±11° | 22mm±1mm | 22mm±1mm |
| Rating speed: | 36rpm | 20-80rpm | 20-100rpm |
| Max. Loading weight: | 0.8Kg | 1.5Kg | 1.5kg |
| Running mode: | Continous | Continous | Continous, Timing |
| Timing range: | 0-999min | ||
| Input voltage (frequency): | AC 220V±10％(50/60Hz) | AC 220V±10％(50/60Hz) | AC100-240V(50/60Hz) |
| Permissible relative moisture: | 80% | 80% | 80% |
| Output power: | 6W | 10W | 10W |
| Roll length: | 230mm | Standard 236mm, customizable | Standard 236mm, customizable |
| Protective class: | IP21 | IP21 | IP21 |
| Permissible ambient temperature: | 5-50°C | 5-50°C | 5-50°C |
| Dimensions: | 260×155×140mm | 410×270×100mm | 410×270×100mm |
| Net. Weight: | 3Kg | 4.5Kg | 4.0kg |
