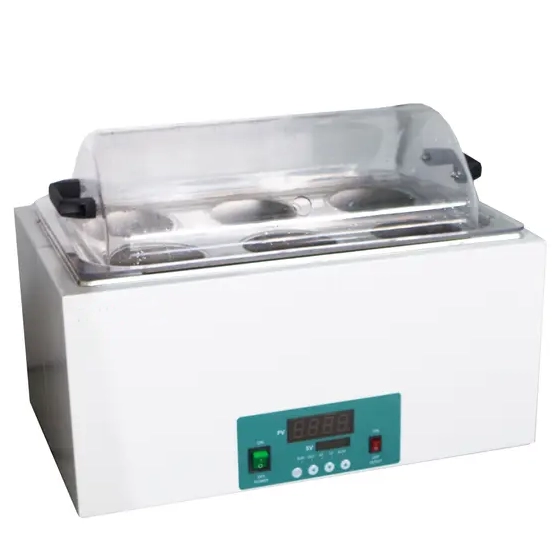

HHW111 Series WaterTank(stretching Inner Chamber)
Feature:
1.The inner liner and water bath cover are processed using high-quality stainless steel stretching technology, and the surfaceis treated withanti-corrosion technology.The top cover is made of high-temperature resistant plastic material, which is lightweight and beautiful.
2. Add a water discharge switch, one click operation, convenient for waterdischarge.
3. The anti dry burning(water shortage and power outage) functionensures the safe operation of the product.
Spec:
| Model | HHW111 | SHHW11L | HHW30L | SHHW30L | |
| Heating Mode | Nature water convection heat transfer | ||||
| Function | Temp. Range | RT+5-65℃ | RT+5-100℃ | RT+5-65℃ | RT+5-100℃ |
| Temp. Resolution Ratio | 0.1℃ | ||||
| Temp. Motion | ±0.5℃ | ||||
| Temp. Uniformity | ±1.0℃ | ||||
| Structure | inner Chamber | SUS304 stretching | |||
| Outer Shell | Cold roling steel electrostatic spraying exterior | ||||
| Heater | Stainless steel heating tube | ||||
| Power Rating | 0.3kW | 0.6kW | 1.0kW | 1.5kW | |
| Controller | Temp.Control Mode | PID | |||
| Temp. Setting Mode | Touch button setting | ||||
| Temp. Display Mode | Meaturng temperature displays on the three digtal tubes upper tow, set tomperature displays on the lower row | ||||
| Timer | 0-9990min (with timing walt function) | ||||
| Operation Function | Fixed temperature operation, timing function, auto stop. | ||||
| Program Mode | Optional | ||||
| Additioral Function | Deviation Correction, menu key locked, power fallure back-up. power-off memory | ||||
| Sensor | NTC | ||||
| Safety Device | Over temperature alam | ||||
| Inner Chambersize(W”L”H)(mm) | 295*235*150 | 295*235*150 | 500*296*200 | 500*296*200 | |
| Exterior Size(W”L”H)(mm) | 360*297*345 | 360*297*345 | 565*358*395 | 565*358*395 | |
| Packing Size(W”L”H)(mm) | 390*327*395 | 390*327*395 | 595*388*445 | 595*388*445 | |
| Volume | 11L | 30L | |||
| Specification | Load Per Rack | 5kg | |||
| Shelf Number | 1 | ||||
| Power Supply(50160Hz)Current Rating | AC220V/1.3A | AC220V/2.7A | AC220V/4.5A | AC220V/6.BA | |
| Nw/GW (kg) | 3.3/4 | 4.5/5 | 6/7 | 7.5/9 | |
