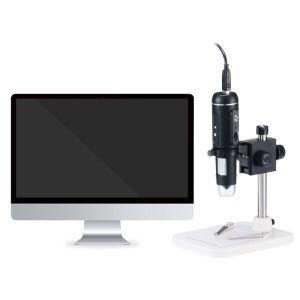

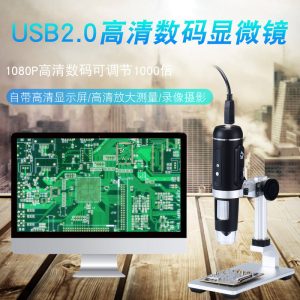

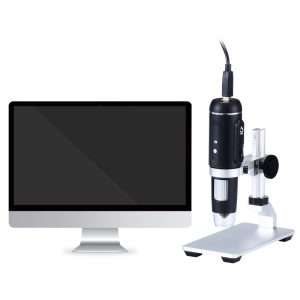

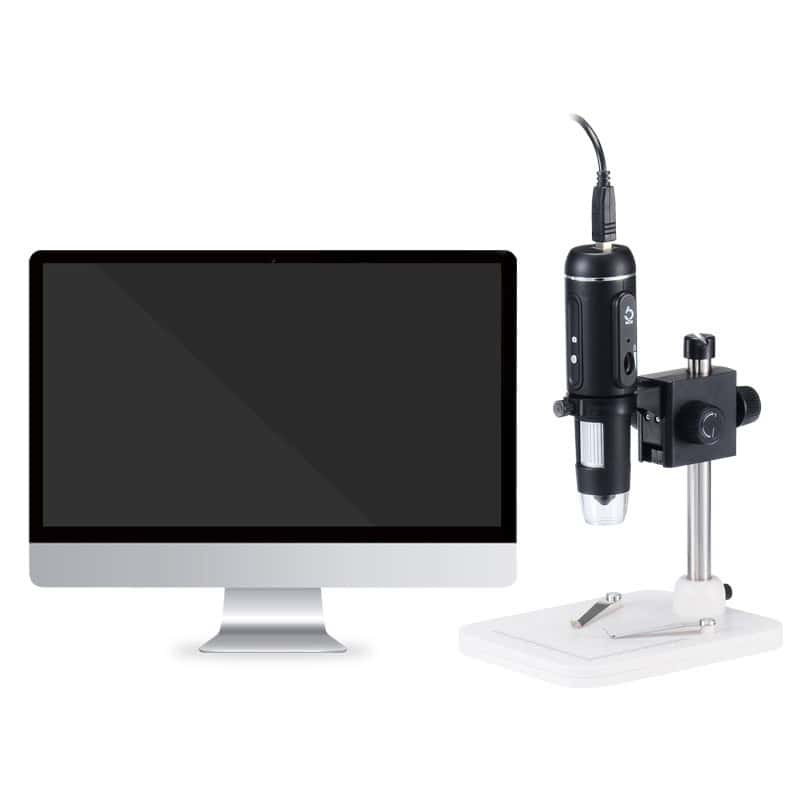

| Digital microscope |
| project |
parameter |
| Image sensor |
1/6″ color CMOS image sensor |
| Resolution |
640*480, VGA, QVGA |
| Data Format |
MJPG/YUY2 |
| Output format |
Dynamic: AVI/YUY2 |
| Static: BMP/JPEG |
| Focus mode |
Manual |
| Pixel size |
640*480 |
| Frame rate |
25F/s |
| Minimum illumination |
0.1Lux |
| White balance |
Auto |
| Drive type |
Uvc |
| CD |
Embedded Drive Measurement Software User Manual |
| light source |
Positive white LED |
| Working current |
450mA maximum |
| Lens structure |
5G |
| System Support |
Win10 Win8 Win7 Vista Win XP LINUX |
| power input |
USB-5V |
| Signal transmission method |
USB2.0 |
| Operating temperature |
-20°C—75°C |
| Working humidity |
30%~90% Rh |
| Body size |
112MM (long) 33MM (outer diameter) |
| Machine weight / color box size |
250g (including color box) / 150MM * 125MM * 45MM |
| Packing quantity/weight per case |
50 units / 13.2kg |
| Carton size |
640mm*312*245mm |
